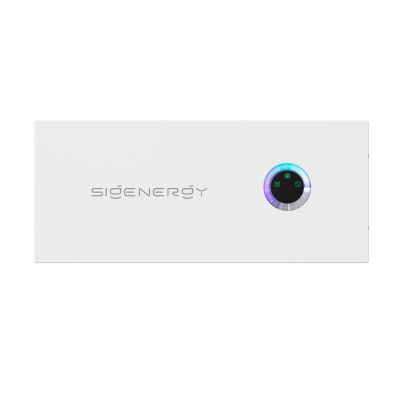

Sigenergy SigenStor Hybrid 4.0kW - Single Phase
SKU: SIG-11040016
The Sigenergy SigenStor Hybrid 4.0kW - Single Phase is a high-efficiency hybrid inverter with 2 MPPTs, a DC/AC ratio of 2, and IP66 protection. It supports battery storage, advanced safety features, and smart connectivity for seamless solar integration.
- Manufacturer Sigenergy
- Phases 1 Phase
- No. of MPPT 4
- Communication WLAN / Fast Ethernet | RS485 | Sigen CommMod (4G/3G/2G)
- IP Rating IP66
High Efficiency & Optimised Energy Conversion
The SigenStor Hybrid 4.0kW features 2 MPPTs to maximise solar energy capture, adapting to varying sunlight conditions for optimal performance. A DC/AC ratio of 2 allows for higher PV input, and its 98% peak efficiency ensures minimal energy loss.
Battery-Ready for Scalable Storage
Designed to work with SigenStor Battery Modules (5.0kWh / 8.0kWh), this hybrid inverter supports up to six battery modules, offering flexibility for energy storage expansion.
- Battery voltage range: 300 - 600V
- Peak output power (10s): 6,000W
- Smart charge and discharge management
Advanced Safety & Protection
The Sigenergy SigenStor Hybrid 4.0kW - Single Phase prioritises system safety with advanced protection mechanisms.
- DC reverse polarity protection to prevent incorrect wiring
- Type II DC/AC surge protection for system reliability
- Arc fault circuit interrupter to reduce fire hazards
- Insulation and residual current monitoring for enhanced electrical safety
Flexible Installation & Smart Monitoring
With an IP66-rated enclosure, this inverter is built for long-lasting performance in various environments. It also includes advanced communication features for remote monitoring and management.
- WLAN & Ethernet for seamless connectivity
- RS485 communication for integration with external systems
- Optional 4G connectivity via Sigen CommMod
Why Choose the Sigenergy SigenStor Hybrid 4.0kW?
- 98% efficiency for maximum energy conversion
- Battery-ready with scalable storage options
- Advanced protection for system reliability
- IP66-rated for indoor and outdoor installation
- Smart connectivity for remote monitoring and control
The Sigenergy SigenStor Hybrid 4.0kW - Single Phase is the perfect solution for installers looking to provide a high-performance, safe, and future-ready energy system for residential applications.
