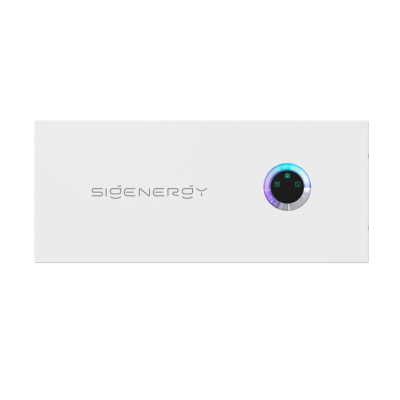

Sigenergy SigenStor Hybrid 12kW - Three Phase
SKU: SIG-11010023
The Sigenergy SigenStor Hybrid 12kW - Three Phase is a high-performance hybrid inverter designed for efficient solar energy management. It features up to four MPPTs, robust battery compatibility, and an IP66-rated enclosure for reliable indoor and outdoor operation. With a high DC/AC ratio and seamless backup power capability, this inverter is an excellent choice for residential and commercial solar installations.
- Manufacturer Sigenergy
- Phases 3 Phase
- Inverter Type Hybrid Inverter
- No. of MPPT 4
- Communication WLAN / Fast Ethernet | RS485 | Sigen CommMod (4G/3G/2G)
- IP Rating IP66
Advanced Hybrid Inverter for Three-Phase Systems
The Sigenergy SigenStor Hybrid 12kW - Three Phase is a powerful and flexible hybrid inverter designed for both grid-tied and off-grid applications. With its ability to manage solar PV, battery storage, and grid energy efficiently, it ensures optimal performance and energy independence.
High DC Input Capacity & Multi-MPPT Technology
This hybrid inverter supports a high DC input power of up to 19.2kW, allowing greater flexibility in system design. With up to four Maximum Power Point Trackers (MPPTs), it maximises energy harvest from solar panels, even in varied shading conditions.
Seamless Battery Integration
The Sigenergy SigenStor Hybrid 12kW - Three Phase is compatible with SigenStor BAT 5.0 and BAT 8.0 battery modules, supporting up to six modules per controller. The system’s wide battery voltage range (600V – 900V) ensures efficient energy storage and discharge.
Reliable Backup Power & High Efficiency
- Nominal output power: 12,000W with peak backup power of up to 18,000W for 10 seconds.
- Fast switchover time ensures uninterrupted power supply in case of grid failure.
- High conversion efficiency optimises energy use.
Robust & Smart Connectivity
Designed for intelligent energy management, this inverter features WLAN, Fast Ethernet, RS485, and 4G/3G/2G connectivity through the Sigen CommMod. It also supports remote monitoring and system diagnostics, making it easy for installers to manage and optimise system performance.
Durable Design for Any Environment
- IP66-rated for outdoor and indoor installation.
- Operating temperature range: -30°C to 60°C, ensuring reliable performance in extreme conditions.
- Compact, wall-mounted design with smart air cooling.
Certified Safety & Compliance
This inverter meets strict international safety standards, including IEC/EN 62109-1, IEC/EN 62109-2, and IEC/EN 61000-6-2. It features advanced protection mechanisms such as DC reverse polarity protection, insulation monitoring, and surge protection for both AC and DC circuits.
