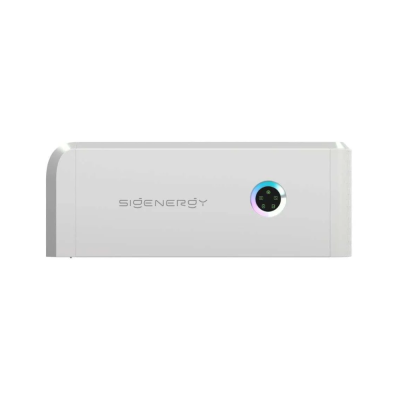

Sigenergy Sigenstor Energy Controller 17kW - Three Phase
SKU: SIG-11010016
The Sigenergy Sigenstor Energy Controller 17kW - Three Phase is a cutting-edge energy management system designed for solar and battery storage. With 4 MPPTs, a DC/AC ratio of 1.6, and IP66 protection, it delivers high efficiency, advanced safety, and reliable backup power for commercial and residential applications.
- Manufacturer Sigenergy
- Phases 3 Phase
- No. of MPPT 4
- Communication WLAN / Fast Ethernet | RS485 | Sigen CommMod (4G/3G/2G)
- IP Rating IP66
Optimised Solar Harvesting & Energy Distribution
With up to 4 Maximum Power Point Trackers (MPPTs), the Sigenergy Sigenstor Energy Controller 17kW maximises PV energy yield by adjusting dynamically to changing sunlight conditions. The system supports a DC/AC ratio of up to 1.6, allowing for greater solar input and improved efficiency.
Reliable Backup Power & Grid Flexibility
- Peak backup power of 25,500W ensures reliable energy supply during outages.
- On-grid and off-grid compatibility enables seamless energy transitions.
- Multi-source black start ensures system restart without reliance on the grid.
Advanced Protection & Safety Features
The Sigenergy Sigenstor Energy Controller 17kW - Three Phase prioritises system safety with a range of advanced protections.
- DC reverse polarity protection prevents wiring errors.
- Type II DC/AC surge protection guards against voltage spikes.
- Arc fault circuit interrupter for early fault detection and prevention.
- Insulation and residual current monitoring for enhanced electrical safety.
Seamless Integration & Communication
This energy controller integrates effortlessly with Sigenstor Battery Modules (5.0kWh / 8.0kWh) and the Sigen Energy Gateway. Key features include:
- Supports up to six battery modules for scalable energy storage.
- Multiple connectivity options, including WLAN, Ethernet, RS485, and optional 4G.
- IP66-rated for durability in all weather conditions.
Why Choose the Sigenergy Sigenstor Energy Controller 17kW?
- Advanced EMS for intelligent energy control.
- High efficiency with up to 4 MPPTs and a DC/AC ratio of 1.6.
- Comprehensive safety features, including surge and arc fault protection.
- Reliable backup power with a peak output of 25,500W.
- Fully compatible with Sigenstor batteries and energy gateway.
The Sigenergy Sigenstor Energy Controller 17kW - Three Phase is a powerful and scalable solution for installers looking to provide high-performance, safe, and efficient energy systems to their customers.
