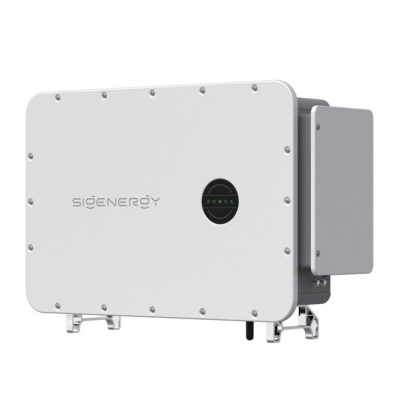

Sigenergy Sigen PV 60M1

The Sigenergy Sigen PV 60M1 is a 60kW three-phase solar inverter purpose-built for commercial and industrial PV systems requiring robust performance, advanced safety, and system scalability. Designed for high-output arrays, it offers efficient energy conversion, smart protection features, and seamless integration into modern solar infrastructures.

With support for up to 120kW of PV input and five independent MPPTs, the Sigenergy Sigen PV 60M1 enables optimised string configurations and high energy harvest across diverse site conditions. Its wide voltage range (160–1000V) and 32A per MPPT input current make it suitable for next-generation high-power modules.

Key Features of the Sigenergy Sigen PV 60M1:

High Output Performance
Delivers 60kW of nominal output with a peak capacity of 66kW, offering headroom for oversizing PV arrays.

Five MPPTs for System Flexibility
Enhanced design flexibility with 2 PV strings per MPPT ensures optimal energy yield across uneven irradiance or roof layouts.

Exceptional Efficiency
Up to 98.6% max efficiency and 98.3% European weighted efficiency ensures minimal energy loss in real-world conditions.

Advanced Safety Protections
Includes arc fault detection (AFCI), DC reverse polarity protection, residual current monitoring, insulation detection, and surge protection (Type II) on both DC and AC sides.

Parallel System Support
Connect multiple units in parallel with no need for a separate data logger, simplifying large system deployments.

Weatherproof, Durable Design
Rated IP66 for outdoor use with operational temperatures ranging from -30°C to +60°C. Smart air cooling ensures consistent performance without the need for high-maintenance mechanical components.

Intelligent Connectivity
Supports WLAN, RS485, Fast Ethernet, and Sigen CommMod (4G/3G/2G) for remote monitoring and seamless commissioning.

Compact and Installer-Friendly
Lightweight 75kg body with compact dimensions (918 × 640 × 340 mm) simplifies transportation and rooftop installation.

The Sigenergy Sigen PV 60M1 delivers the performance, protection, and flexibility that commercial solar installers demand. Whether deployed in a distributed rooftop system or a ground-mount commercial array, it ensures high output, low maintenance, and long-term reliability.
