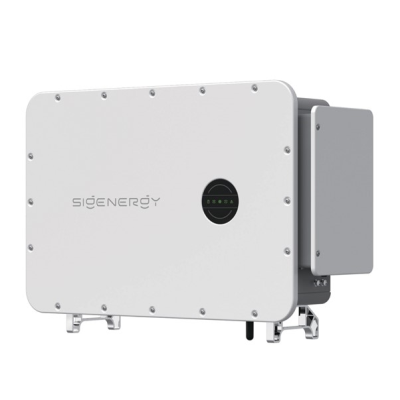

Sigenergy Sigen PV 100M1

The Sigenergy Sigen PV 100M1 is a commercial-grade 100kW three-phase inverter engineered for high-output solar PV systems. Built to deliver performance, safety, and flexibility, it is ideal for large-scale rooftop or ground-mounted arrays where long-term reliability and efficient energy conversion are paramount.

Designed to handle up to 200kWp of PV input, the Sigenergy Sigen PV 100M1 features 8 Maximum Power Point Trackers (MPPTs), each supporting two PV strings. This architecture allows precise string-level optimisation, maximising generation across diverse orientations and shading profiles.

Smart cooling, high efficiency, and IP66 protection ensure reliable performance in demanding conditions, while a range of built-in protections safeguard both the system and connected infrastructure.

Key Features of the Sigenergy Sigen PV 100M1:

High Capacity Output
Delivers 100kW nominal and up to 110kW peak output—ideal for larger commercial PV arrays.

8 MPPTs with Wide Voltage Range
Advanced design supports 160V to 1,000V input range, with 32A per MPPT for next-gen high-current modules.

Exceptional Efficiency
Up to 98.6% maximum and 98.4% European efficiency to reduce system losses and improve energy harvest.

Robust Safety Architecture
Includes Arc Fault Circuit Interrupter (AFCI), DC reverse polarity protection, residual current monitoring, insulation detection, and full AC/DC surge protection (Type II).

Smart System Integration
Compatible with WLAN, Fast Ethernet, RS485, and optional 4G/3G/2G via Sigen CommMod for flexible commissioning and remote monitoring.

Effortless Scalability
Supports parallel inverter operation without a central data logger—ideal for multi-inverter commercial systems.

Installer-Friendly Design
Weighs just 75kg and features compact dimensions (918 × 640 × 340 mm) for easier handling and rooftop installation.

Durable for All Environments
Operating temperature range of -30°C to +60°C, and up to 5,000m altitude (derating above 4,000m). IP66-rated for outdoor use.

The Sigenergy Sigen PV 100M1 is the go-to solution for installers looking to deploy high-efficiency, scalable solar systems in commercial and industrial environments. It offers the performance and reliability that professionals demand for mission-critical solar energy projects.
