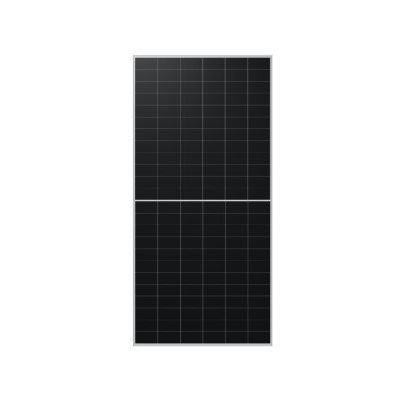

LONGi Solar 485W Hi-MoX10 HPBC + N-type Mono Solar Module - Black Frame/White Backsheet

• Manufacturer LONGi Solar

The LONGi Solar 485W Hi-MoX10 HPBC + N-type Mono Solar Module - Black Frame/White Backsheet is a cutting-edge solar solution tailored for European commercial and residential applications. Designed to meet the demands of modern energy projects, this high-performance module features innovative Hybrid Passivated Back Contact (HPBC) technology and N-type mono silicon cells for outstanding efficiency, reliability, and aesthetic appeal.

Exceptional Efficiency and Power Output

Delivering up to 24.0% module efficiency at STC and a maximum power output of 485W, this LONGi Hi-MoX10 module maximises yield across various sunlight conditions. The advanced back contact cell structure reduces internal resistance and improves low-light performance, ensuring reliable energy generation throughout the year.

Advanced Technology for Better Longevity

The N-type mono cells and BC architecture offer a low degradation rate, with less than 1% in the first year and just 0.35% annually from year 2 to 30, making it an ideal long-term investment. Backed by a 30-year linear power warranty and a 15-year materials and workmanship warranty, this module delivers long-term performance with confidence.

Built for the European Market

Designed to perform in challenging weather conditions, the module withstands 5400 Pa front and 2400 Pa rear static loads, as well as hail impact testing at 25 mm and 23 m/s. It is IEC/UL certified and meets all key European standards for quality, environment, and occupational safety.

Installer Advantages

This module offers flexible installation options for various mounting systems and rooftops thanks to its compact dimensions (1800×1134×30 mm) and standard connection layout. The IP68-rated junction box and aluminium frame ensure long-lasting protection against the elements, making it a top choice for European solar professionals.

Key Technical Specs:

Peak Power (Pmax): 485W

Open Circuit Voltage (Voc): 40.40V

Short Circuit Current (Isc): 15.23A

Voltage at Maximum Power (Vmpp): 33.40V

Current at Maximum Power (Impp): 14.53A

Weight: 21.6 kg

For projects requiring efficiency, reliability, and European-compliant design, the LONGi Solar 485W Hi-MoX10 HPBC + N-type Mono Solar Module is the premium choice.
